Window Convolution Example 1 (Fibre-Assigned LRG)#
Load modules.
import warnings
warnings.filterwarnings('ignore')
import numpy as np
import matplotlib.pyplot as plt
from scipy.interpolate import InterpolatedUnivariateSpline
from triumvirate._arrayops import reshape_threept_datatab
from triumvirate.transforms import resample_lglin
from triumvirate.winconv import (
BispecWinConv,
ThreePointWindow,
WinConvFormulae,
)
from config import DATADIR
Set I/O.
SUFFIX_BOX = "cubicbox_LRG_z0.500_mocks"
SUFFIX_SKY = "LRG_altmtl_SGC_0.4z0.6_mocks"
SUFFIX_PROXY = SUFFIX_BOX
SUFFIX_WIN = f"{SUFFIX_SKY}_18xF".replace('mocks', 'mock0')
Define window convolution formulae.
winconv_formula = WinConvFormulae({
'000': [
('000', '000', 1.),
('110', '110', 1./3.),
('220', '220', 1./5.),
('022', '022', 1./5.),
('202', '202', 1./5.),
('112', '112', 1./6.),
('132', '132', 1./9.),
('312', '312', 1./9.),
('000', 'ic', -1.),
],
'202': [
('000', '202', 1.),
('202', '000', 1.),
('110', '112', 1./3.),
('112', '110', 1./3.),
('110', '312', 1./3.),
('312', '110', 1./3.),
('202', '202', 2./7.),
('022', '220', 1./5.),
('220', '022', 1./5.),
('112', '112', 1./6.),
('312', '312', 8./63.),
('112', '312', 1./21.),
('312', '112', 1./21.),
('132', '132', 1./6.),
('202', 'ic', -1.),
],
})
Load unwindowed cubic-box and windowed cut-sky measurements.
results_bk_box = {}
results_bk_sky = {}
for multipole in winconv_formula.multipoles:
results_bk_box[multipole] = np.load(
DATADIR / "common" / "unwindowed" /
f"bk{multipole.abstr}_diag_{SUFFIX_BOX}.npy",
allow_pickle=True,
).item()
results_bk_sky[multipole] = np.load(
DATADIR / "common" / "windowed" /
f"bk{multipole.abstr}_diag_{SUFFIX_SKY}.npy",
allow_pickle=True,
).item()
bk_box = {}
dbk_box = {}
for multipole in results_bk_box.keys():
N_box = len(results_bk_box[multipole]['stats'])
k_box = results_bk_box[multipole]['coords']
bk_box[multipole] = results_bk_box[multipole]['stats_mean']
dbk_box[multipole] = results_bk_box[multipole]['stats_std'] / np.sqrt(N_box)
bk_sky = {}
dbk_sky = {}
for multipole in results_bk_sky.keys():
N_sky = len(results_bk_sky[multipole]['stats'])
k_sky = results_bk_sky[multipole]['coords']
bk_sky[multipole] = results_bk_sky[multipole]['stats_mean']
dbk_sky[multipole] = results_bk_sky[multipole]['stats_std'] / np.sqrt(N_sky)
Load proxy model and resample log-linearly.
results_bkk_proxy = {
multipole: np.load(
DATADIR / "common" / "model-proxy" /
f"bk{multipole.abstr}_full_{SUFFIX_PROXY}.npy",
allow_pickle=True,
).item()
for multipole in winconv_formula._multipoles_Z_true
}
k_proxy = None
bkk_proxy = {}
for multipole in winconv_formula._multipoles_Z_true:
k_proxy, bkk_proxy[multipole] = reshape_threept_datatab(
results_bkk_proxy[multipole]['coords'],
results_bkk_proxy[multipole]['stats_mean'],
shape='triu' if multipole._issym() else 'full'
)
nsamp = 2 ** int(np.round(np.log2(k_proxy.size)))
k_in = None
bkk_in = {}
for multipole in winconv_formula._multipoles_Z_true:
(k_in, _), bkk_in[multipole] = resample_lglin(
k_proxy, bkk_proxy[multipole], nsamp, spline=1
)
Load window function.
windows = ThreePointWindow.load_from_file(
DATADIR / "common" / "windows" /
f"zetaw_full_{SUFFIX_WIN}.npz"
)
Perform convolution.
winconv = BispecWinConv(
winconv_formula, windows.r, windows.Q,
k_in=k_in,
transform_kwargs={
'extrap': 5,
'extrap2d': False,
}
)
k_conv = winconv.k_out
bkk_conv = winconv.convolve(bkk_in)
np.savez(
DATADIR / "Figure_5" /
f"bkk_conv_full_{SUFFIX_SKY}.npz",
)

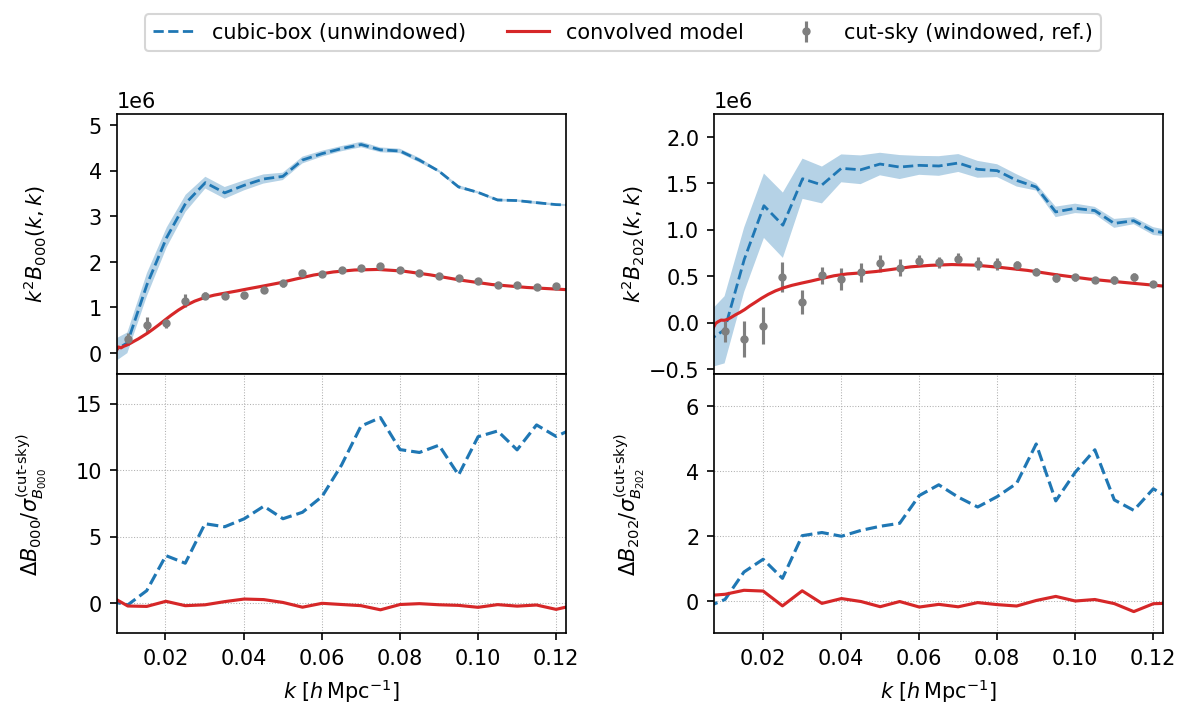

Visualise convolution results.
LW = 1.33
ALPHA = 0.33
COORD_POWIDX = 2
KMIN, KMAX = 0.0050, 0.1225
BINIDX = list(range(1, 24, 2))
fig, ax = plt.subplots(
2, len(winconv_formula.multipoles),
figsize=(4.5*len(winconv_formula.multipoles), 4.5),
sharex=True,
dpi=150,
)
ax = ax if isinstance(ax, np.ndarray) else [ax]
for ax_, multipole in zip(ax.T, winconv_formula.multipoles):
line_box = ax_[0].plot(
k_box, k_box**COORD_POWIDX * bk_box[multipole],
c='C0', ls='--', lw=LW,
label="cubic-box (unwindowed)"
)
bounds_box = ax_[0].fill_between(
k_box,
k_box**COORD_POWIDX * (bk_box[multipole] - dbk_box[multipole]),
k_box**COORD_POWIDX * (bk_box[multipole] + dbk_box[multipole]),
fc=line_box[-1].get_color(), ec='none', alpha=ALPHA
)
line_sky = ax_[0].errorbar(
k_sky,
k_sky**COORD_POWIDX * bk_sky[multipole],
yerr=k_sky**COORD_POWIDX * dbk_sky[multipole],
fmt='o', ms=3., c='C7',
label="cut-sky (windowed, ref.)",
)
line_conv = ax_[0].plot(
k_conv,
k_conv**COORD_POWIDX * np.diag(bkk_conv[multipole]).real,
c='C3', ls='-',
label='convolved model'
)
bk_box_pole = InterpolatedUnivariateSpline(
k_box, bk_box[multipole].real
)(k_sky)
bk_conv_pole = InterpolatedUnivariateSpline(
k_conv, np.diag(bkk_conv[multipole]).real
)(k_sky)
ax_[1].plot(
k_sky,
(bk_box_pole - bk_sky[multipole]) / dbk_sky[multipole] / np.sqrt(N_sky),
c='C0', ls='--'
)
ax_[1].plot(
k_sky,
(bk_conv_pole - bk_sky[multipole]) / dbk_sky[multipole] / np.sqrt(N_sky),
c='C3', ls='-'
)
ax_[1].grid(True, which='both', ls=':', lw=0.5)
ax_[0].set_xlim(KMIN, KMAX)
ax_[0].set_xlim(0.0075, KMAX)
if multipole.abstr == '000':
ax_[0].set_ylim(-0.45e6, 5.25e6)
ax_[1].set_ylim(-2.25, 17.25)
if multipole.abstr == '202':
ax_[0].set_ylim(-0.55e6, 2.25e6)
ax_[1].set_ylim(-1., 7.)
ax_[0].ticklabel_format(useOffset=False)
ax_[1].set_xlabel(r"$k$ [$h\,\mathrm{Mpc}^{-1}$]")
ax_[0].set_ylabel(fr"$k^{{{COORD_POWIDX}}} B_{{{multipole.abstr}}}(k, k)$")
ax_[1].set_ylabel(fr"$\Delta B_{{{multipole.abstr}}} / \sigma_{{B_{{{multipole.abstr}}}}}^{{\text{{(cut-sky)}}}}$")
ax_[0].yaxis.set_label_coords(-0.15, 0.5)
ax_[1].yaxis.set_label_coords(-0.15, 0.5)
if ax_[0] is ax[0, 0]:
handles, labels = ax_[0].get_legend_handles_labels()
ordering = [0, 1, 2]
handles = [handles[idx] for idx in ordering]
labels = [labels[idx] for idx in ordering]
fig.legend(
handles, labels,
ncol=3, bbox_to_anchor=(0.5, 1.0), loc='center'
)
fig.subplots_adjust(hspace=0., wspace=0.33)
